Chapter 17 Model Graphics

Inserting free text

You can insert free text in your model independently of any shape. You select and move this text like any symbol.

To insert free text:

1. Click the Text tool.
2. Click the position in the diagram where you want to insert the text.
3. Drag the cursor to another position so as to draw a rectangle.
4. Release the mouse button.

   A default text is created.

5. Double-click the text.

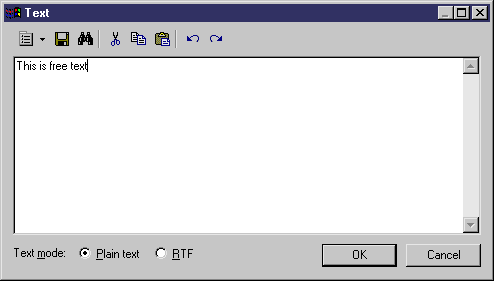

   A text input window is displayed.
6. Type text in the window.

7. Click OK.
