Chapter 17 Model Graphics

Applying transparency to graphic shapes

You can apply transparency to graphic shapes. Transparent shapes become a sort of skeleton as they take the color of the diagram background and can only be selected by clicking on their borders.

Use case system

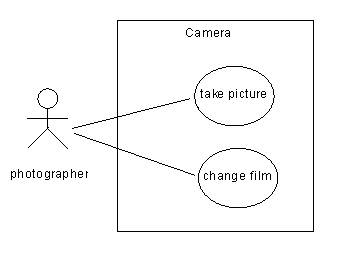

You can apply transparency to the rectangle you draw to represent the system in the use case diagram.

To apply transparency to graphic shapes:

1. Select one or more symbols.
2. Select Symbol→Format to display the Symbol Format dialog box.
3. Click the Fill tab.
4. Deselect the Fill color check box.
5. Click OK.
