Chapter 8 Building an Executable BPM: Working with Service Description Objects

Creating an operation from the service interface property sheet

You can create an operation using a service interface property sheet.

To create an operation in an executable BPM:

1. Open a service interface property sheet.
2. Click the Operations tab.
3. Click a blank line in the list.

   or

   Click the Add a Row tool.

   An arrow is displayed at the beginning of the line.
4. Type a name and a code for the operation.
5. Click Apply to commit the creation of the operation.

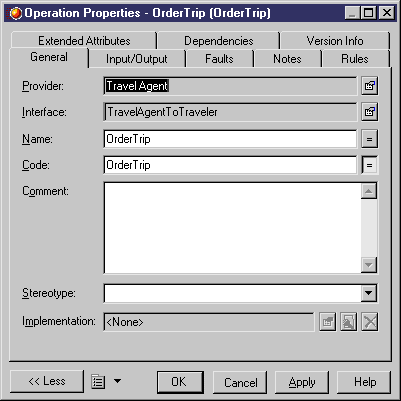

6. Double-click the new operation line to display the operation property sheet.

7. Specify properties as required.
8. Click OK.
