Chapter 9 Generating Persistent Objects for Java and JSF Pages


Defining Hibernate Class Mapping Options

Classes can be mapped to tables or views. Since views have many constraints and limited functionality (for example they do not have primary keys and reference keys), some views cannot be updated, and the mappings may not work properly in some cases.

There are some conditions that need to be met in order to generate mapping for a specific class:

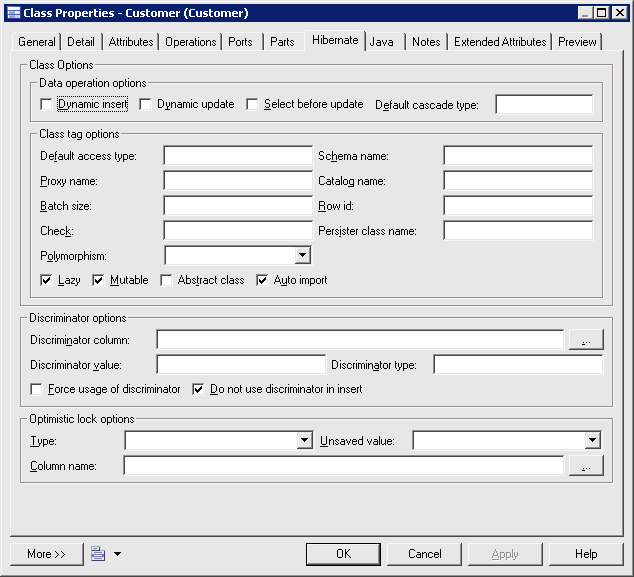

Hibernate-specific class mapping options can be defined in the Hibernate tab of the class property sheet:


Option Description
Dynamic insert Specifies that INSERT SQL should be generated at runtime and will contain only the columns whose values are not null.

Hibernate Tag: dynamic-insert
Dynamic update Specifies that UPDATE SQL should be generated at runtime and will contain only the columns whose values have changed.

Hibernate Tag: dynamic-update
Select before update Specifies that Hibernate should never perform a SQL UPDATE unless it is certain that an object is actually modified.

Hibernate Tag: select-before-update
Default cascade type Specifies the default cascade style.

Hibernate Tag: default-cascade
Default access type Specifies the default access type (field or property)

Hibernate Tag: default-access
Proxy name Specifies an interface to use for lazy initializing proxies.

Hibernate Tag: proxy
Batch size Specifies a "batch size" for fetching instances of this class by identifier.

Hibernate Tag: batch-size
Check Specifies a SQL expression used to generate a multi-row check constraint for automatic schema generation.

Hibernate Tag: check
Polymorphism Specifies whether implicit or explicit query polymorphism is used.

Hibernate Tag: polymorphism
Schema name Specifies the name of the database schema.

Hibernate Tag: schema
Catalog name Specifies the name of the database catalog.

Hibernate Tag: catalog
Row id Specifies that Hibernate can use the ROWID column on databases which support it (for example, Oracle).

Hibernate Tag: rowed
Persister class name Specifies a custom persistence class.

Hibernate Tag: persister
Lazy Specifies that the class should be lazy fetching.

Hibernate Tag: lazy
Mutable Specifies that instances of the class are mutable.

Hibernate Tag: mutable
Abstract class Specifies that the class is abstract.

Hibernate Tag: abstract
Auto import Specifies that an unqualified class name can be used in a query

Hibernate Tag: Auto-import
Discriminator column Specifies the discriminator column or formula for polymorphic behavior in a one table per hierarchy mapping strategy.

Hibernate Tag: discriminator
Discriminator value Specifies a value that distinguishes individual subclasses, which are used for polymorphic behavior.

Hibernate Tag: discriminator-value
Discriminator type Specifies the discriminator type.

Hibernate Tag: type
Force usage of discriminator Forces Hibernate to specify allowed discriminator values even when retrieving all instances of the root class.

Hibernate Tag: force
Do not use discriminator in insert Forces Hibernate to not include the column in SQL INSERTs

Hibernate Tag: insert
Optimistic lock type Specifies an optimistic locking strategy.

Hibernate Tag: optimistic-lock
Optimistic lock column name Specifies the column used for optimistic locking. A field is also generated if this option is set.

Hibernate Tag: version/ timestamp
Optimistic lock unsaved value Specifies whether an unsaved value is null or undefined.

Hibernate Tag: unsaved-value
