Chapter 1: Introduction

Using Mobile Web Studio

Mobile Web Studio is a Web application. Access Mobile Web Studio using Internet Explorer.

Logging in to the Mobile Web Studio

Log in to Mobile Web Studio by entering the following URL in Internet Explorer:
```
http://hostname.domain:port/onepage/loader.jsp
```
For example, if your machine name is “lab2k”, your domain is “sybase.com,” and your port number is “4040,” enter:
```
http://lab2k.sybase.com:4040/onepage/loader.jsp
```
In a development environment, your port number may be different, and in a production system, the port number may not be necessary at all if you are using port 80.
When the Mobile Web Studio Login window displays, enter the user name masuper and password m8super, and click Login. These are the default entries for the Mobile Web Studio account with administrative privileges.
You see the Mobile Web Studio welcome window.

If your browser session expires, you see Session has expired. You need to re-authenticate. Click OK to close the message window, start a new browser session, log in, and close the old window session.

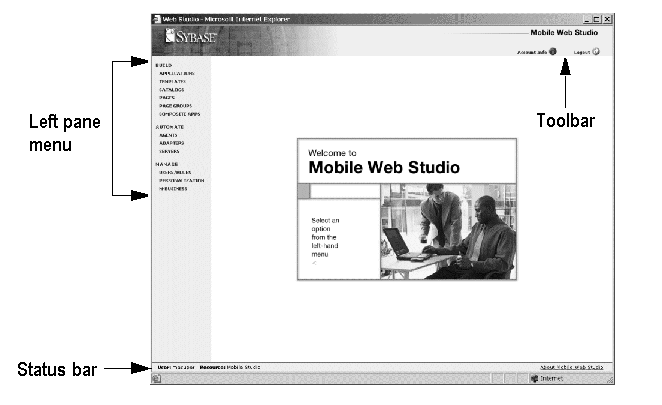

Figure 1-1: Mobile Web Studio welcome window

The welcome window displays:

Left pane menus – select from menu groupings that allow you to:
- Build – create, edit, and manage applications, templates, catalogs, pages, page groups, and composite applications.
- Automate – create agents to automatically process application content, monitor agent activity, or use adapters to write application content to an e-mail message, database, or file system.
- Manage – manage Mobile Web Studio resources and create predefined application input fields or drop-down lists, and deploy applications to the M-Business Anywhere server.
Status bar – always shows the user name of the person logged in to Mobile Web Studio (User), the group of application pages available to this user (Resource), and the version information (About Mobile Web Studio).
Toolbar – view your account information, change the password, and log out of Mobile Web Studio. Once you make a selection from the left pane, an option-specific toolbar displays.

To see all features, you may need to maximize the browser window.
