Setting a Delay

To set a delay, decide where in the flow you want to pause the runtime processing and if you want to set the delay for specific time at which the processing will continue to the next activity in the flow or if you want to set it relative to when processing on the delay activity begins.

To set a delay:

  1. Place the Delay (simple activity) between the activities where you want to pause processing.

  2. Select the Delay activity and display the property settings for the activity.

  3. In the Properties view, use the drop-down list to select the Absolute or Relative time value.

  4. Set the time values for the delay:

      For a Relative delay time period:



      For an Absolute delay time period:

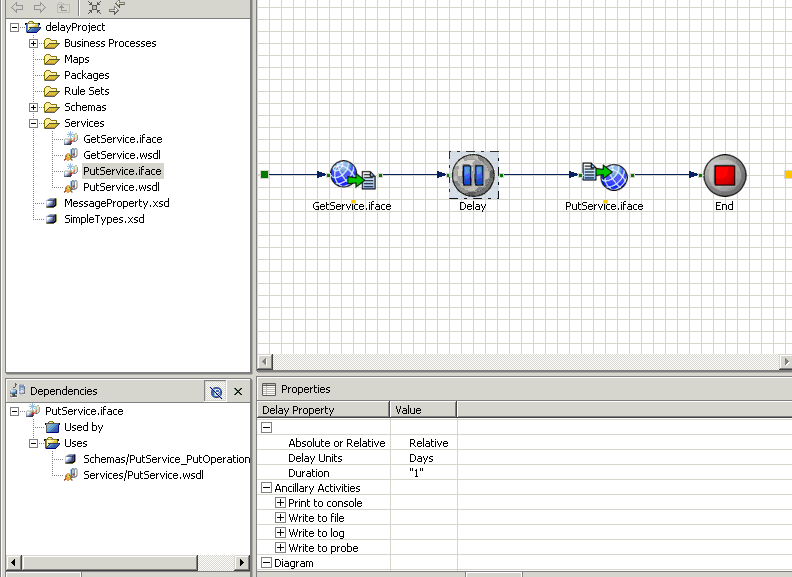

Example of relative settings for a delay

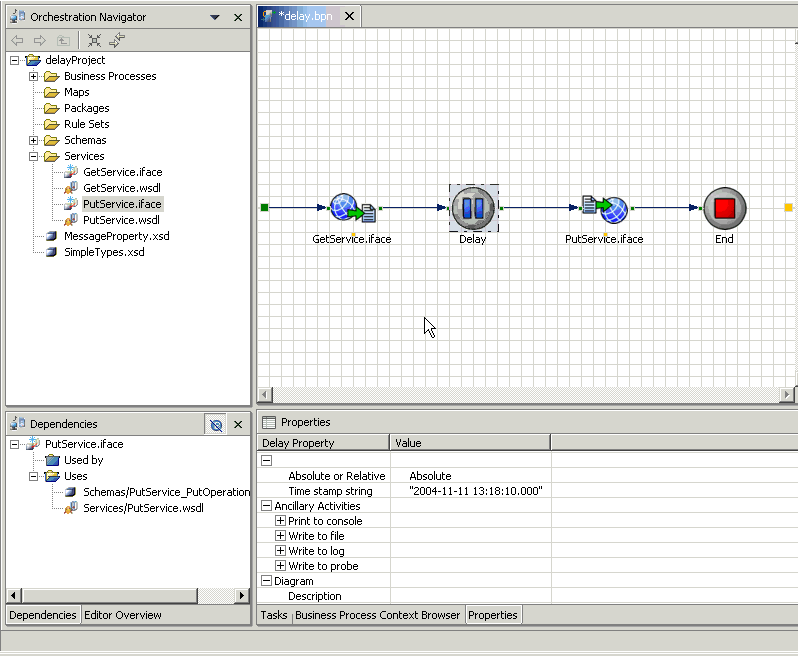

Example of absolute settings for a delay
