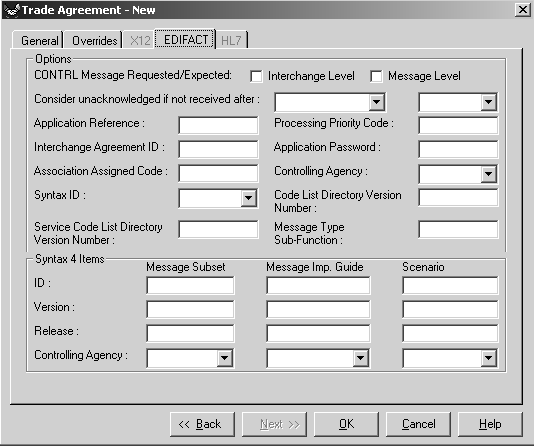

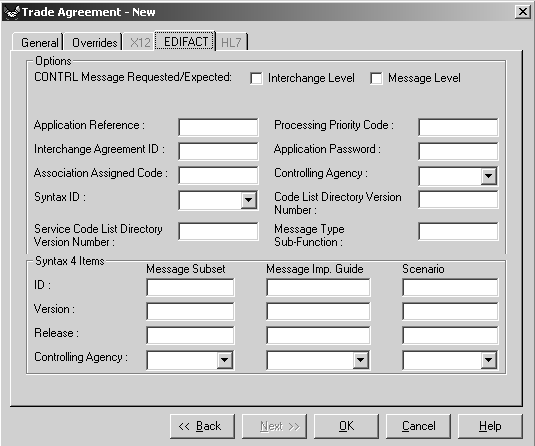

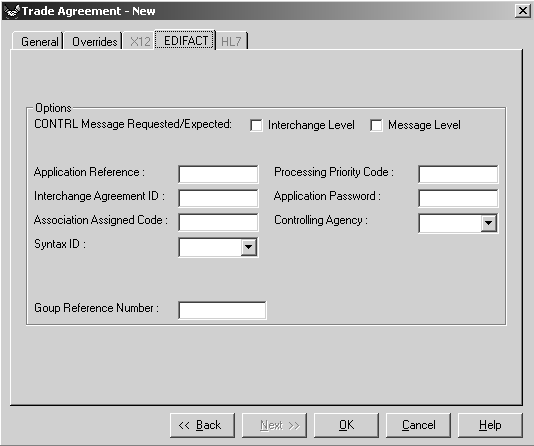

Trade Agreement window – EDIFACT tab

CONTRL Message Requested/Expected

Indicates whether a CONTRL message is expected back from the receiver of this message. If a CONTRL message is expected, the program writes certain information to the log during mapping that will enable it to process the CONTRL message. You should choose:

• Interchange Level if you and your trading partner have agreed in an Implementation Agreement that the receiver of an EDIFACT message will return a CONTRL message containing a UCI segment indicating whether the interchange-level UNB segment was received and whether it was syntactically acceptable.

• Message Level if you and your trading partner have agreed in an Implementation Agreement that the receiver of an EDIFACT message will return a CONTRL message containing a UCM segment indicating whether a message-level UNH segment was received and whether it was syntactically acceptable.

Consider unacknowledged if not received after

In the two text boxes following Consider unacknowledged if not received after, the user enters values that tell the period of time in which you expect to receive a CONTRL message. If the CONTRL message is received after this period, it is considered overdue. (This allows EC Gateway to report on overdue acknowledgements.)

• First specifies the unit of measure (DAYS, HOURS, MINUTES, or SECONDS) for the period during which an acknowledgement to your outgoing message must be received.

• In the text box following Time Units, you select the actual number of units of time after which an acknowledgement is considered overdue. (The drop-down list includes the valid values 1 – 99.)

Application Reference

Used to populate the S005 0026 field on the UNB segment. This is the name of the EDI message that will be contained in the UNB envelope (for example, "PAYMUL").

Processing priority code

Used to populate the S005 0029 field on the UNB segment.

Interchange Agreement ID

Used to populate the S005 0032 field on the UNB segment.

Application password

Used to populate the S008 0058 field on the UNG segment.

Association Assigned Code

Used to populate the S008 0057 field on the UNG segment and on the S009 0057 field on the UNH segment.

Controlling Agency

Used to populate the S004 0051 field on the UNG segment and the S009 0051 field on the UNH segment.

Syntax ID

Used to populate the S001 0001 field on the UNB segment.

Group Reference Number

Used to populate the S004 0048 field on the UNG segment.

CONTRL Message Requested/Expected

Indicates whether a CONTRL message is expected back from the receiver of this message. If a CONTRL message is expected, the program writes certain information to the log during mapping that will enable it to process the CONTRL message. You should choose:

• Interchange Level if you and your trading partner have agreed in an Implementation Agreement that the receiver of an EDIFACT message will return a CONTRL message containing a UCI segment indicating whether the interchange-level UNB segment was received and whether it was syntactically acceptable.

• Message Level if you and your trading partner have agreed in an Implementation Agreement that the receiver of an EDIFACT message will return a CONTRL message containing a UCM segment indicating whether a message-level UNH segment was received and whether it was syntactically acceptable.

Consider unacknowledged if not received after

In the two text boxes following “Consider unacknowledged if not received after,” the user enters values that tell the period of time in which you expect to receive a CONTRL message. If the CONTRL message is received after this period, it is considered overdue. (This allows EC Gateway to report on overdue acknowledgements.)

• First specifies the unit of measure (DAYS, HOURS, MINUTES, or SECONDS) for the period during which an acknowledgement to your outgoing message must be received.

• In the text box following Time Units, you select the actual number of units of time after which an acknowledgement is considered overdue. (The drop-down list includes the valid values 1 – 99.)

Application Reference

Used to populate the S005 0026 field on the UNB segment. This is the name of the EDI message that will be contained in the UNB envelope (for example, "PAYMUL").

Processing priority code

Used to populate the S005 0029 field on the UNB segment.

Interchange Agreement ID

Used to populate the S005 0032 field on the UNB segment.

Application password

Used to populate the S008 0058 field on the UNG segment.

Association Assigned Code

Used to populate the S008 0057 field on the UNG segment and on the S009 0057 field on the UNH segment.

Controlling Agency

Used to populate the S004 0051 field on the UNG segment and the S009 0051 field on the UNH segment.

Syntax ID

Used to populate the S001 0001 field on the UNB segment.

Group Reference Number

Used to populate the S004 0048 field on the UNG segment.

Code List Directory Version Number

Used to populate the S009 0110 field on the UNH segment.

Service Code List Directory Version Number

Used to populate the S001 0080 field on the UNB segment.

Message Type Sub Function

Used to populate the S009 0113 field on the UNH segment.

Message Subset

Under Message Subset:

• The information entered in the ID is used to populate the S016 0115 field on the UNH segment.

• The information entered in the Version is used to populate the S016 0116 field on the UNH segment.

• The information entered in the Release is used to populate the S016 0118 field on the UNH segment.

• The information entered in the Controlling Agency is used to populate the S016 0051 field on the UNH segment.

Message Imp(lementation) Guide

Under Message Imp Guide:

• The information entered in the ID is used to populate the S017 0121 field on the UNH segment.

• The information entered in the Version is used to populate the S017 0122 field on the UNH segment.

• The information entered in the Release is used to populate the S017 0124 field on the UNH segment.

The information entered in the Controlling Agency is used to populate the S017 0051 field on the UNH segment.

Scenario

Under Scenario:

• The information entered in the ID is used to populate the S018 0127 field on the UNH segment.

• The information entered in the Version is used to populate the S018 0128 field on the UNH segment.

• The information entered in the Release is used to populate the S018 0130 field on the UNH segment.

The information entered in the Controlling Agency is used to populate the S018 0051 field on the UNH segment.
