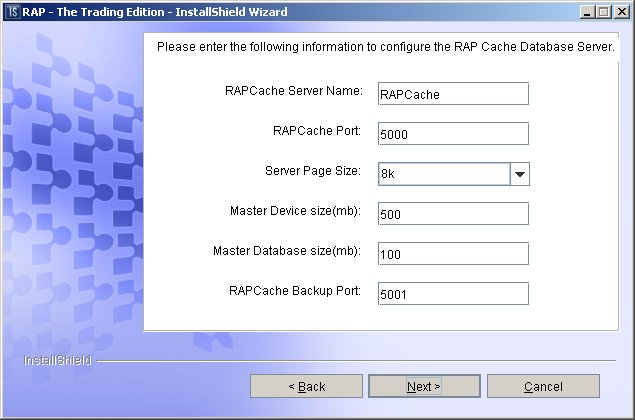

This dialog prompts you for the RAPCache Server settings. Any initial values reflect ASE 15.0.2 defaults.
Field name |
Default value |
Description |
|---|---|---|
RAPCache Server Name |
RAPCache |
Identifies the RAPCache server name. |
RAPCache Port |
5000 |
Identifies the port that the RAPCache Server uses to service connection requests. Although the default port is 5000, you can specify any free port. |
Server Page Size |
8K |
Identifies the page size that Adaptive Server assigns to all database and database objects on the server. |
Master Device Size |
500MB |
Identifies the master device size in megabytes (MB). |
Master Database Size |
100MB |
Identifies the master database size in megabytes (MB). The master database contains Operations Console database tables and objects. |
RAPCache Backup Port |
5001 |
Identifies the port number that the backup server uses to handle network connection requests. The default value is 5001 |
