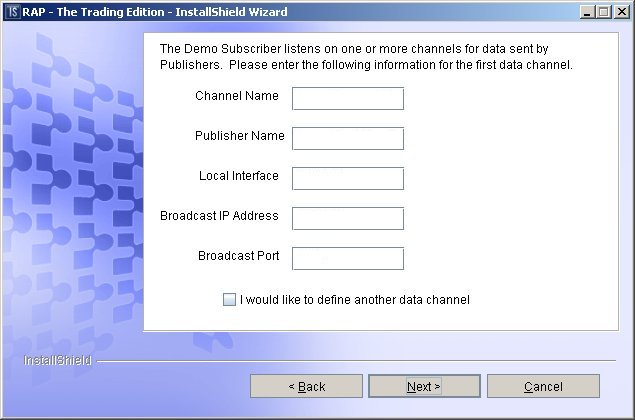

Demo Subscriber configuration dialog 1

Channel Name

Identifies a specific data channel that a particular publisher uses to multicast messages to Demo Subscriber.

The Channel Name depends on the data channel you want Demo Subscriber to monitor. If, for example, you want to Demo Subscriber to monitor FAST Feed Handler, and kept all the defaults when you defined the FAST Feed data channels, you would use FAST Channel 1 as the first Channel Name. Subsequent channel names would match those of other data channel names.

Publisher Name

Identifies the publisher that sends messages to this subscriber. The Publisher Name can be any value. It is used to identify the publisher in the event that an error is logged.

Local Interface

Identifies the IP address of the network interface that the publisher uses to multicast messages to Demo Subscriber. This value must match the local interface value that the publisher uses to multicast messages.

If you want Demo Subscriber to monitor a particular FAST Feed Handler data channel, for example, the local interface value you use here must match the local interface value for the data channel you defined for FAST Feed Handler.

Broadcast IP Address

Identifies the Class D multicast IP address that the publisher uses to multicast messages to Demo Subscriber. This value must match the multicast address that the publisher uses to multicast messages to Demo Subscriber.

If you want Demo Subscriber to monitor a FAST Feed Handler data channel that multicasts messages on 224.0.2.0, for example, you would use that address for this field. All multicast IP addresses must range from 224.0.2.0 through 224.0.255.0.

Broadcast Port

Identifies the port from which the publisher multicasts messages to Demo Subscriber.

Publishers can multicast messages to Demo Subscriber on multiple data channels that share the same local interface and Broadcast IP Address, but the Broadcast Port must be unique to each data channel.
